MAH
一：MAH架構介紹
- MHA (Master High Availability)目前在MySQL高可用方面是一個相對成熟的解決方案，它由日本人youshimaton開發，是一套優秀的作為MySQL高可用性環境下故障切換和主從提升的高可用軟件。在MySQL故障切換過程中，MHA能做到0~30秒之內自動完成數據庫的故障切換操作，并且在進行故障切換的過程中，MHA能最大程度上保證數據庫的一致性，以達到真正意義上的高可用。
- MHA由兩部分組成:MHA Manager (管理節點)和MHANode(數據節點)。MHA Manager可以獨立部署在一臺獨立的機器上管理多個Master-Slave集群，也可以部署在一臺Slave上。當Master 出現故障是，它可以自動將最新數據的Slave 提升為新的Master,然后將所有其他的Slave重新指向新的Master。整個故障轉移過程對應用程序是完全透明的。
二：適用場景
目前MHA主要支持一主多從的架構，要搭建MHA，要求一個復制集群必須最少有3臺數據庫服務器，一主二從，即一臺充當Master ,一臺充當備用Master，另一臺充當從庫。出于成本考慮，淘寶在此基礎上進行了改造，目前淘寶開發的 TMHA 已經支持一主一從。
三：MHA工作原理
1.從宕機崩潰的 Master保存二進制日志事件(binlog event) ;
2.識別含有最新更新的Slave;
3.應用差異的中繼日志(relay log)到其他Slave;
4.應用從 Master 保存的二進制日志事件;
5.提升—個 Slave為新的Master;
6.使其他的 Slave 連接新的 Master 進行復制;
四：MHA的組成
1：Manager工具包
- masterha_check_ssh:檢查MHA的 SSH配置情況
- masterha_check_repl:檢查MySQL復制狀況
- masterha_manager:啟動MHA
- masterha_check_status:檢測當前MHA運行狀態
- masterha_master_monitor:檢測Master是否宕機
- masterha_master_switch:控制故障轉移(自動或手動)
- masterha_conf_host:添加或刪除配置的server 信息
2：Node工具包
通常由MHA Manager的腳本觸發，無需人工操作
- save_binary_logs:保存和復制Master 的 binlog日志
- apply_diff_relay_logs:識別差異的中級日志時間并將其應用到其他 Slave
- filter_mysqlbinlog:去除不必要的ROOLBACK事件（已經廢棄)
- purge_relay_logs:清除中繼日志（不阻塞SQL線程)
五：MHA 特點
- 自動故障切換過程中，MHA試圖從宕機的主服務器上保存進制日志,最大程度的保證數據不丟失
- 使用半同步復制，可以大大降低數據丟失的風險
- 目前MHA支持一主多從架構，最少三臺服務，即一主兩從
MHA 架構部署
一：拓?fù)鋱D
二：數據庫安裝
MySQL 版本使用 5.6.36、cmake 版本使用 2.8.6
1：安裝編譯依賴的環境
[root@master ~]# yum -y install ncurses-devel gcc-c++ perl-Module-Install
2.：安裝 gmake 編譯軟件
[root@master ~]# tar zxvf cmake-2.8.6.tar.gz
[root@master ~]# cd cmake-2.8.6
[root@master cmake-2.8.6]# ./configure
[root@master cmake-2.8.6]# gmake gmake install
3：安裝 MySQL 數據庫
[root@master ~]# tar -zxvf mysql-5.6.36.tar.gz
[root@master ~]# cd mysql-5.6.36
[root@master mysql-5.6.36]# cmake -DCMAKE_INSTALL_PREFIX=/usr/local/mysql -DDEFAULT_CHARSET=utf8 -DDEFAULT_COLLATION=utf8_general_ci -DWITH_EXTRA_CHARSETS=all -DSYSCONFDIR=/etc
[root@master mysql-5.6.36]# make make install
[root@master mysql-5.6.36]# cp support-files/my-default.cnf /etc/my.cnf
[root@master mysql-5.6.36]# cp support-files/mysql.server /etc/rc.d/init.d/mysqld
[root@master ~]# chmod +x /etc/rc.d/init.d/mysqld
[root@master ~]# chkconfig --add mysqld
[root@master ~]# echo "PATH=$PATH:/usr/local/mysql/bin" >> /etc/profile
[root@master ~]# source /etc/profile
chown -R mysql.mysql /usr/local/mysql groupadd mysql
[root@master ~]# useradd -M -s /sbin/nologin mysql -g mysql
[root@master ~]# chown -R mysql.mysql /usr/local/mysql
[root@master ~]# mkdir -p /data/mysql
[root@master ~]# /usr/local/mysql/scripts/mysql_install_db --basedir=/usr/local/mysql --datadir=/usr/local/mysql/data --user=mysql
4：修改 Master 的主配置文件/etc/my.cnf 文件
將原來配置全部刪除
[root@master ~]# vi /etc/my.cnf
[client]
port = 3306
socket = /usr/local/mysql/mysql.sock
[mysql]
port = 3306
socket = /usr/local/mysql/mysql.sock
[mysqld]
user = mysql
basedir = /usr/local/mysql
datadir = /usr/local/mysql/data
port = 3306
pid-file = /usr/local/mysql/mysqld.pid
socket = /usr/local/mysql/mysql.sock
server-id = 1
log_bin = master-bin
log-slave-updates = true
sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES
另外兩臺 slave 數據庫
三臺服務器的 server-id 不能一樣，其余一樣正常寫入
server-id = 2
log_bin = master-bin
relay-log = relay-log-bin
relay-log-index = slave-relay-bin.index
server-id = 3
log_bin = master-bin
relay-log = relay-log-bin
relay-log-index = slave-relay-bin.index
5：三臺數據庫分別做兩個軟鏈接，軟鏈接是為 HMA 服務的
[root@master ~]# ln -s /usr/local/mysql/bin/mysql /usr/sbin/
[root@master ~]# ln -s /usr/local/mysql/bin/mysqlbinlog /usr/sbin/
6：三臺數據庫啟動 MySQL
[root@master ~]# /usr/local/mysql/bin/mysqld_safe --user=mysql
[root@master ~]# service mysqld restart
Shutting down MySQL.. SUCCESS!
Starting MySQL. SUCCESS!
三：數據庫配置主從同步
登錄數據庫
1：在所有數據庫節點上授權兩個用戶，一個是從庫同步使用，另外一個是 manager 使用
mysql> grant replication slave on *.* to 'myslave'@'20.0.0.%' identified by '123';
mysql> grant all privileges on *.* to 'mha'@'20.0.0.%' identified by 'manager';
mysql> flush privileges;
2：下面三條授權按理論是不用添加的，但是做案例實驗環境時候通過 MHA 檢查MySQL 主從有報錯，報兩個從庫通過主機名連接不上主庫，所以所有數據庫加上下面的授權。
mysql> grant all privileges on *.* to 'mha'@'master' identified by 'manager';
mysql> grant all privileges on *.* to 'mha'@'slave1' identified by 'manager';
mysql> grant all privileges on *.* to 'mha'@'slave2' identified by 'manager';
3：在 master 主機上查看二進制文件和同步點
mysql> show master status;
+-------------------+----------+--------------+------------------+-------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+-------------------+----------+--------------+------------------+-------------------+
| master-bin.000001 | 608 | | | |
+-------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)
4：在 slave1 和 slave2 分別執行同步
mysql> change master to master_host='20.0.0.10',master_user='myslave',master_password='123',master_log_file='master-bin.000001',master_log_pos=608
mysql> start slave;
5：查看 IO 和 SQL 線程都是 yes 代表同步是否正常
mysql> show slave status\G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 20.0.0.10
Master_User: myslave
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: master-bin.000001
Read_Master_Log_Pos: 608
Relay_Log_File: relay-log-bin.000002
Relay_Log_Pos: 284
Relay_Master_Log_File: master-bin.000001
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
必須設置兩個從庫為只讀模式
mysql> set global read_only=1;
6：在 master 主庫插入兩條數據，測試是否同步
mysql> create database test_db;
Query OK, 1 row affected (0.00 sec)
mysql> use test_db;
Database changed
mysql> create table test(id int);
Query OK, 0 rows affected (0.13 sec)
mysql> insert into test(id) values (1);
Query OK, 1 row affected (0.03 sec)
7：在兩個從庫分別查詢?nèi)缦滤菊f明主從同步正常
mysql> select * from test_db.test;
+------+
| id |
+------+
| 1 |
+------+
1 row in set (0.00 sec)
四：安裝 MHA 軟件
1：所有服務器上都安裝 MHA 依賴的環境，首先安裝 epel 源（3+1）
[root@master ~]# cd /etc/yum.repos.d/
[root@master yum.repos.d]# ll
總用量 20
drwxr-xr-x. 2 root root 187 10月 10 18:08 backup
-rw-r--r--. 1 root root 1458 12月 28 23:07 CentOS7-Base-163.repo
-rw-r--r--. 1 root root 951 12月 29 14:52 epel.repo
-rw-r--r--. 1 root root 1050 11月 1 04:33 epel.repo.rpmnew
-rw-r--r--. 1 root root 1149 11月 1 04:33 epel-testing.repo
-rw-r--r--. 1 root root 228 10月 27 18:43 local.repo
三臺數據庫加上一臺 mha-manager
[root@mha-manager ~]# yum install epel-release --nogpgcheck
[root@mha-manager ~]# yum install -y perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-ParalExtUtils-CBuilder perl-ExtUtils-MakeMaker perl-CPAN
2：在所有服務器上必須先安裝 node 組件 （3+1）
[root@mha-manager ~]# tar zxvf mha4mysql-node-0.57.tar.gz
[root@mha-manager ~]# cd mha4mysql-node-0.57
[root@mha-manager mha4mysql-node-0.57]# perl Makefile.PL
[root@mha-manager mha4mysql-node-0.57]# make make install
3：在 mha-manager 上安裝 manager 組件
[root@mha-manager ~]# tar zxvf mha4mysql-manager-0.57.tar.gz
[root@mha-manager ~]# cd mha4mysql-manager-0.57/
[root@mha-manager mha4mysql-manager-0.57]# perl Makefile.PL
[root@mha-manager mha4mysql-manager-0.57]# make make install

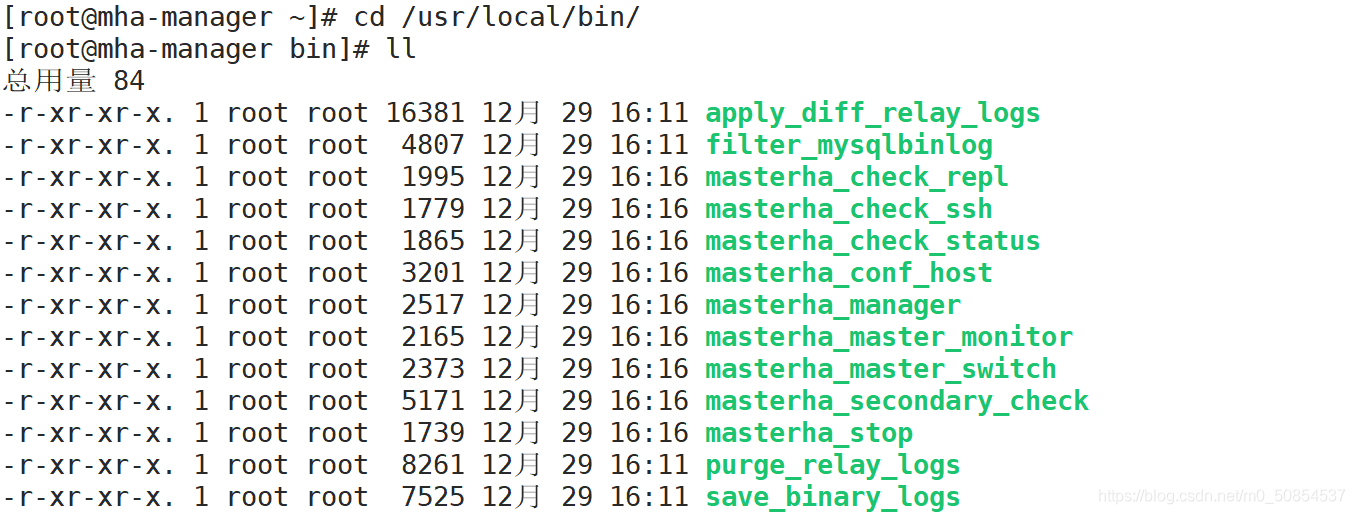

manager 安裝后在/usr/local/bin 下面會生成幾個工具
masterha_check_ssh 檢查 MHA 的 SSH 配置狀況
masterha_check_repl 檢查 MySQL 復制狀況
masterha_manger 啟動 manager的腳本
masterha_check_status 檢測當前 MHA 運行狀態
masterha_master_monitor 檢測 master 是否宕機
masterha_master_switch 控制故障轉移（自動或者手動）
masterha_conf_host 添加或刪除配置的 server 信息
masterha_stop 關閉manager

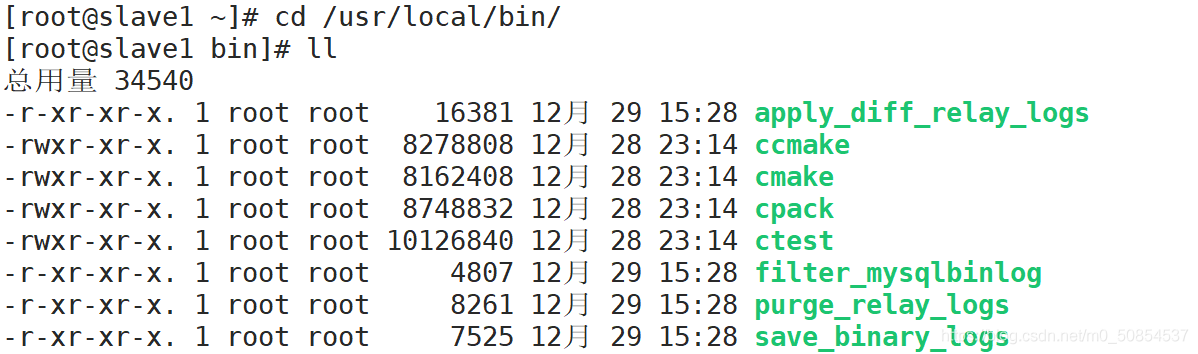

node 安裝后也會在/usr/local/bin 下面會生成幾個腳本
save_binary_logs 保存和復制 master 的二進制日志
apply_diff_relay_logs 識別差異的中繼日志事件并將其差異的事件應用于其他的 slave
filter_mysqlbinlog 去除不必要的 ROLLBACK 事件（MHA 已不再使用這個工具）
purge_relay_logs 清除中繼日志（不會阻塞 SQL 線程）
五：配置無密碼認證
1：在 manager 上配置到所有節點的無密碼認證
（1）生成密鑰
[root@mha-manager ~]# ssh-keygen -t rsa # 一直回車
（2）生成密鑰之后發送給其他3個數據庫
[root@mha-manager ~]# ssh-copy-id 20.0.0.10 # 輸入：yes 密碼：123456
[root@mha-manager ~]# ssh-copy-id 20.0.0.11
[root@mha-manager ~]# ssh-copy-id 20.0.0.12
（3）登錄測試
[root@mha-manager ~]# ssh root@20.0.0.10
Last login: Tue Dec 29 14:52:09 2020 from 20.0.0.1
[root@master ~]# exit
登出
Connection to 20.0.0.10 closed.
[root@mha-manager ~]# ssh root@20.0.0.11
Last login: Tue Dec 29 13:20:07 2020 from 20.0.0.1
[root@slave1 ~]# exit
登出
Connection to 20.0.0.11 closed.
[root@mha-manager ~]# ssh root@20.0.0.12
Last login: Tue Oct 27 19:45:24 2020 from 20.0.0.1
[root@slave2 ~]# exit
登出
Connection to 20.0.0.12 closed.
2：在 master 上配置到數據庫節點的無密碼認證
（1）生成密鑰
[root@master ~]# ssh-keygen -t rsa
（2）生成密鑰之后發送給其他2個數據庫
[root@master ~]# ssh-copy-id 20.0.0.11
[root@master ~]# ssh-copy-id 20.0.0.12
（3）登錄測試
[root@master ~]# ssh root@20.0.0.11
Last login: Tue Dec 29 16:40:06 2020 from 20.0.0.13
[root@slave1 ~]# exit
登出
Connection to 20.0.0.11 closed.
[root@master ~]# ssh root@20.0.0.12
Last login: Tue Oct 27 23:05:20 2020 from 20.0.0.13
[root@slave2 ~]# exit
登出
Connection to 20.0.0.12 closed.
3：在 slave1 上配置到數據庫節點的無密碼認證
（1）生成密鑰
[root@slave1 ~]# ssh-keygen -t rsa
（2）生成密鑰之后發送給其他2個數據庫
[root@slave1 ~]# ssh-copy-id 20.0.0.10
[root@slave1 ~]# ssh-copy-id 20.0.0.12
（3）登錄測試
[root@slave1 ~]# ssh root@20.0.0.10
Last login: Tue Dec 29 16:39:55 2020 from 20.0.0.13
[root@master ~]# exit
登出
Connection to 20.0.0.10 closed.
[root@slave1 ~]# ssh root@20.0.0.12
Last login: Tue Oct 27 23:14:06 2020 from 20.0.0.10
[root@slave2 ~]# exit
登出
Connection to 20.0.0.12 closed.
4：在 slave2 上配置到數據庫節點的無密碼認證
（1）生成密鑰
[root@slave2 ~]# ssh-keygen -t rsa
（2）生成密鑰之后發送給其他2個數據庫
[root@slave2 ~]# ssh-copy-id 20.0.0.10
[root@slave2 ~]# ssh-copy-id 20.0.0.11
（3）登錄測試
[root@slave2 ~]# ssh root@20.0.0.10
Last login: Tue Dec 29 16:59:43 2020 from 20.0.0.11
[root@master ~]# exit
登出
Connection to 20.0.0.10 closed.
[root@slave2 ~]# ssh root@20.0.0.11
Last login: Tue Dec 29 16:48:51 2020 from 20.0.0.10
[root@slave1 ~]# exit
登出
Connection to 20.0.0.11 closed.
六：配置 MHA
1：在 manager 節點上復制相關腳本到/usr/local/bin 目錄
（1）拷貝
[root@mha-manager ~]# cp -ra /root/mha4mysql-manager-0.57/samples/scripts/ /usr/local/bin/
（2）拷貝后會有四個執行文件
master_ip_failover #自動切換時 VIP 管理的腳本
master_ip_online_change #在線切換時 vip 的管理
power_manager #故障發生后關閉主機的腳本
send_report #因故障切換后發送報警的腳本
（3）復制上述的自動切換時 VIP 管理的腳本到/usr/local/bin 目錄，這里使用腳本管理 VIP
[root@mha-manager scripts]# cp master_ip_failover /usr/local/bin/
[root@mha-manager scripts]# cd ..

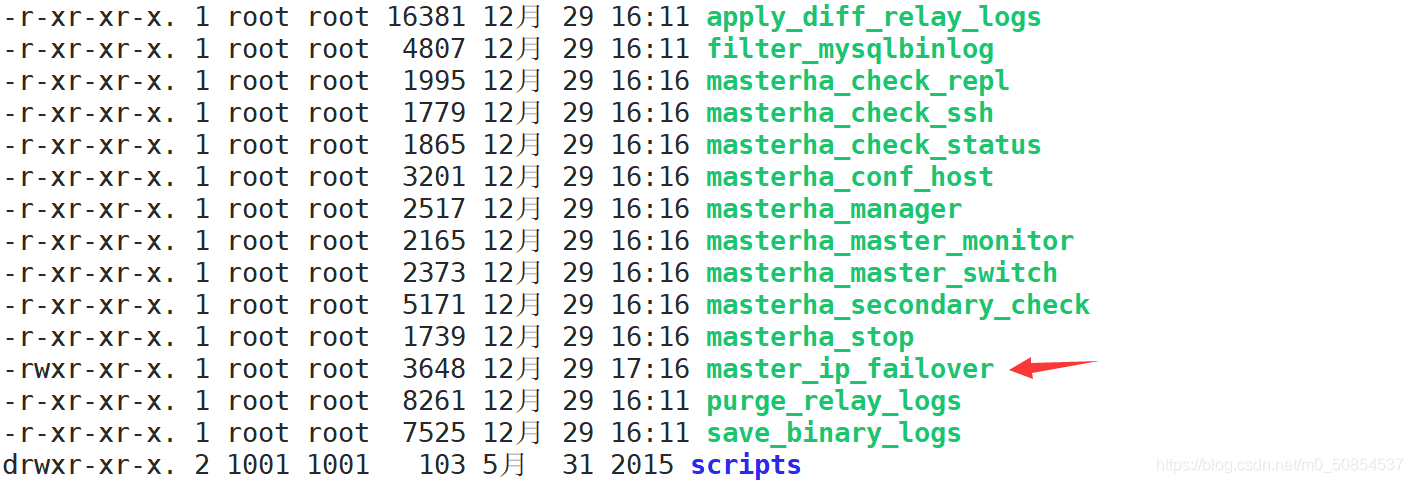

[root@mha-manager bin]# ll
總用量 88
2：修改自動切換腳本
[root@mha-manager ~]# vi /usr/local/bin/master_ip_failover # 刪除里面所有內容
#!/usr/bin/env perl
use strict;
use warnings FATAL => 'all';
use Getopt::Long;
my (
$command, $ssh_user, $orig_master_host, $orig_master_ip,
$orig_master_port, $new_master_host, $new_master_ip, $new_master_port
);
#############################添加內容部分#########################################
my $vip = '20.0.0.200';
my $brdc = '20.0.0.255';
my $ifdev = 'ens33';
my $key = '1';
my $ssh_start_vip = "/sbin/ifconfig ens33:$key $vip";
my $ssh_stop_vip = "/sbin/ifconfig ens33:$key down";
my $exit_code = 0;
#my $ssh_start_vip = "/usr/sbin/ip addr add $vip/24 brd $brdc dev $ifdev label $ifdev:$key;/usr/sbin/arping -q -A -c 1 -I $ifdev $vip;iptables -F;";
#my $ssh_stop_vip = "/usr/sbin/ip addr del $vip/24 dev $ifdev label $ifdev:$key";
##################################################################################
GetOptions(
'command=s' => \$command,
'ssh_user=s' => \$ssh_user,
'orig_master_host=s' => \$orig_master_host,
'orig_master_ip=s' => \$orig_master_ip,
'orig_master_port=i' => \$orig_master_port,
'new_master_host=s' => \$new_master_host,
'new_master_ip=s' => \$new_master_ip,
'new_master_port=i' => \$new_master_port,
);
exit main();
sub main {
print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";
if ( $command eq "stop" || $command eq "stopssh" ) {
my $exit_code = 1;
eval {
print "Disabling the VIP on old master: $orig_master_host \n";
stop_vip();
$exit_code = 0;
};
if ($@) {
warn "Got Error: $@\n";
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "start" ) {
my $exit_code = 10;
eval {
print "Enabling the VIP - $vip on the new master - $new_master_host \n";
start_vip();
$exit_code = 0;
};
if ($@) {
warn $@;
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "status" ) {
print "Checking the Status of the script.. OK \n";
exit 0;
}
else {
usage();
exit 1;
}
}
sub start_vip() {
`ssh $ssh_user\@$new_master_host \" $ssh_start_vip \"`;
}
# A simple system call that disable the VIP on the old_master
sub stop_vip() {
`ssh $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`;
}
sub usage {
print
"Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n";
}
3：創建 MHA 軟件目錄并拷貝配置文件
[root@mha-manager ~]# mkdir /etc/mha
[root@mha-manager ~]# cp mha4mysql-manager-0.57/samples/conf/app1.cnf /etc/mha
[root@mha-manager ~]# vi /etc/mha/app1.cnf
[server default]
manager_workdir=/var/log/masterha/app1
manager_log=/var/log/masterha/app1/manager.log
master_binlog_dir=/usr/local/mysql/data
master_ip_failover_script=/usr/local/bin/master_ip_failover
master_ip_online_change_script=/usr/local/bin/master_ip_online_change
password=manager
user=mha
ping_interval=1
remote_workdir=/tmp
repl_password=123
repl_user=myslave
secondary_check_script=/usr/local/bin/masterha_secondary_check -s 20.0.0.11 -s 20.0.0.12
shutdown_script=""
ssh_user=root
[server1]
hostname=20.0.0.10
port=3306
[server2]
hostname=20.0.0.11
port=3306
candidate_master=1
check_repl_delay=0
[server3]
hostname=20.0.0.12
port=3306
七：健康檢查
1：測試 ssh 無密碼認證，如果正常最后會輸出 successfully
[root@mha-manager ~]# masterha_check_ssh
--conf=server_config_file> must be set.
[root@mha-manager ~]# masterha_check_ssh --conf=/etc/mha/app1.cnf
Tue Dec 29 20:19:16 2020 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Tue Dec 29 20:19:16 2020 - [info] Reading application default configuration from /etc/mha/app1.cnf..
Tue Dec 29 20:19:16 2020 - [info] Reading server configuration from /etc/mha/app1.cnf..
Tue Dec 29 20:19:16 2020 - [info] Starting SSH connection tests..
Tue Dec 29 20:19:17 2020 - [debug]
Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.10(20.0.0.10:22) to root@20.0.0.11(20.0.0.11:22)..
Tue Dec 29 20:19:16 2020 - [debug] ok.
Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.10(20.0.0.10:22) to root@20.0.0.12(20.0.0.12:22)..
Tue Dec 29 20:19:17 2020 - [debug] ok.
Tue Dec 29 20:19:18 2020 - [debug]
Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.12(20.0.0.12:22) to root@20.0.0.10(20.0.0.10:22)..
Tue Dec 29 20:19:17 2020 - [debug] ok.
Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.12(20.0.0.12:22) to root@20.0.0.11(20.0.0.11:22)..
Tue Dec 29 20:19:18 2020 - [debug] ok.
Tue Dec 29 20:19:18 2020 - [debug]
Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.11(20.0.0.11:22) to root@20.0.0.10(20.0.0.10:22)..
Tue Dec 29 20:19:17 2020 - [debug] ok.
Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.11(20.0.0.11:22) to root@20.0.0.12(20.0.0.12:22)..
Tue Dec 29 20:19:17 2020 - [debug] ok.
Tue Dec 29 20:19:18 2020 - [info] All SSH connection tests passed successfully.
2：測試 MySQL 主從連接情況，最后出現 MySQL Replication Health is OK 字樣說明
[root@mha-manager ~]# masterha_check_repl --conf=/etc/mha/app1.cnf
Tue Dec 29 20:30:29 2020 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Tue Dec 29 20:30:29 2020 - [info] Reading application default configuration from /etc/mha/app1.cnf..
Tue Dec 29 20:30:29 2020 - [info] Reading server configuration from /etc/mha/app1.cnf..
Tue Dec 29 20:30:29 2020 - [info] MHA::MasterMonitor version 0.57.
Tue Dec 29 20:30:30 2020 - [info] GTID failover mode = 0
Tue Dec 29 20:30:30 2020 - [info] Dead Servers:
Tue Dec 29 20:30:30 2020 - [info] Alive Servers:
Tue Dec 29 20:30:30 2020 - [info] 20.0.0.10(20.0.0.10:3306)
Tue Dec 29 20:30:30 2020 - [info] 20.0.0.11(20.0.0.11:3306)
Tue Dec 29 20:30:30 2020 - [info] 20.0.0.12(20.0.0.12:3306)
Tue Dec 29 20:30:30 2020 - [info] Alive Slaves:
Tue Dec 29 20:30:30 2020 - [info] 20.0.0.11(20.0.0.11:3306) Version=5.6.36-log (oldest major version between slaves) log-bin:enabled
.......省略
Checking the Status of the script.. OK
Tue Dec 29 20:30:55 2020 - [info] OK.
Tue Dec 29 20:30:55 2020 - [warning] shutdown_script is not defined.
Tue Dec 29 20:30:55 2020 - [info] Got exit code 0 (Not master dead).
MySQL Replication Health is OK.
八：查看 master1 的 VIP 地址
查看 20.0.0.200 是否存在
這個 VIP 地址不會因?yàn)閙anager 節點停止 MHA 服務而消失
第一次啟動mha，主庫上并不會主動的生成vip地址，需要手動開啟
[root@master ~]# ifconfig ens33:1 20.0.0.200/24 up
[root@master ~]# ip addr
2: ens33: BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:0c:29:8d:e2:af brd ff:ff:ff:ff:ff:ff
inet 20.0.0.10/24 brd 20.0.0.255 scope global ens33
valid_lft forever preferred_lft forever
inet 20.0.0.200/24 brd 20.0.0.255 scope global secondary ens33:1
valid_lft forever preferred_lft forever
inet6 fe80::a6c1:f3d4:160:102a/64 scope link
valid_lft forever preferred_lft forever
九：啟動 MHA 并查看狀態
[root@mha-manager ~]# nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover /dev/null > /var/log/masterha/app1/manager.log 2>1
[1] 57152
[root@mha-manager ~]# masterha_check_status --conf=/etc/mha/app1.cnf
app1 (pid:57152) is running(0:PING_OK), master:20.0.0.10
故障模擬與修復
一：故障模擬
1：將 master 主服務器 down 掉
[root@master ~]# pkill mysqld
2：查看日志信息
[root@mha-manager ~]# cat /var/log/masterha/app1/manager.log
master 20.0.0.10(20.0.0.10:3306) is down! # 20.0.0.10 以停掉
Check MHA Manager logs at mha-manager:/var/log/masterha/app1/manager.log for details.
Started automated(non-interactive) failover.
Invalidated master IP address on 20.0.0.10(20.0.0.10:3306)
The latest slave 20.0.0.11(20.0.0.11:3306) has all relay logs for recovery.
Selected 20.0.0.11(20.0.0.11:3306) as a new master. # 20.0.0.11 成為主服務器
20.0.0.11(20.0.0.11:3306): OK: Applying all logs succeeded.
20.0.0.11(20.0.0.11:3306): OK: Activated master IP address.
20.0.0.12(20.0.0.12:3306): This host has the latest relay log events.
Generating relay diff files from the latest slave succeeded.
3：查看虛擬地址
虛擬地址已到 20.0.0.11 上面
[root@slave1 ~]# ip addr
2: ens33: BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:0c:29:49:77:39 brd ff:ff:ff:ff:ff:ff
inet 20.0.0.11/24 brd 20.0.0.255 scope global ens33
valid_lft forever preferred_lft forever
inet 20.0.0.200/8 brd 20.255.255.255 scope global ens33:1
valid_lft forever preferred_lft forever
inet6 fe80::5cbb:1621:4281:3b24/64 scope link
valid_lft forever preferred_lft forever
4：查看主從狀態
查看主服務器的二進制文件
[root@slave1 ~]# mysql
mysql> show master status;
+-------------------+----------+--------------+------------------+-------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+-------------------+----------+--------------+------------------+-------------------+
| master-bin.000003 | 120 | | | |
+-------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)
查看從2的狀態
[root@slave2 ~]# mysql
mysql> show slave status\G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 20.0.0.11
Master_User: myslave
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: master-bin.000003
Read_Master_Log_Pos: 120
Relay_Log_File: relay-log-bin.000002
Relay_Log_Pos: 284
Relay_Master_Log_File: master-bin.000003
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
二：故障修復
1：開啟 down 掉的數據庫
[root@master ~]# systemctl start mysqld
[root@master ~]# systemctl status mysqld
● mysqld.service - LSB: start and stop MySQL
Loaded: loaded (/etc/rc.d/init.d/mysqld; bad; vendor preset: disabled)
Active: active (running) since 二 2020-12-29 21:50:03 CST; 25s ago
Docs: man:systemd-sysv-generator(8)
Process: 977 ExecStart=/etc/rc.d/init.d/mysqld start (code=exited, status=0/SUCCESS)
CGroup: /system.slice/mysqld.service
├─1026 /bin/sh /usr/local/mysql/bin/mysqld_safe --datadir=/usr/local/mysql/data --pid-fi...
└─1358 /usr/local/mysql/bin/mysqld --basedir=/usr/local/mysql --datadir=/usr/local/m
2：down 掉的數據庫進行主從復制
主從復制
[root@master ~]# mysql
mysql> change master to master_host='20.0.0.11',master_user='myslave',master_password='123',master_log_file='master-bin.000003',master_log_pos=120;
Query OK, 0 rows affected, 2 warnings (0.01 sec)
# 20.0.0.11 是主服務器 down 掉之后成為的主服務器
mysql> start slave;
Query OK, 0 rows affected (0.01 sec)
查看狀態
mysql> show slave status\G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 20.0.0.11
Master_User: myslave
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: master-bin.000003
Read_Master_Log_Pos: 120
Relay_Log_File: mysqld-relay-bin.000002
Relay_Log_Pos: 284
Relay_Master_Log_File: master-bin.000003
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
3：修改 mha 配置文件
[root@mha-manager ~]# vi /etc/mha/app1.cnf
secondary_check_script=/usr/local/bin/masterha_secondary_check -s 20.0.0.10 -s 20.0.0.12
# 由于 20.0.0.11 成為主服務器，所以要添加 20.0.0.10 和 20.0.0.12 為從服務器
[server1]
hostname=20.0.0.10
candidate_master=1
check_repl_delay=0
port=3306
[server2]
hostname=20.0.0.11
port=3306
# 由于 20.0.0.10 down 掉，所以 server1 文件自動刪除，重新添加 server1，并設為備選主服務器，server2 修改
4：進入數據庫重新授權
[root@master ~]# mysql
mysql> grant all privileges on *.* to 'mha'@'master' identified by 'manager';
Query OK, 0 rows affected (0.00 sec)
mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)
5：再次啟動 mha
[root@mha-manager ~]# nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover /dev/null > /var/log/masterha/app1/manager.log 2>1
[1] 58927
[root@mha-manager ~]# masterha_check_status --conf=/etc/mha/app1.cnf
app1 (pid:58927) is running(0:PING_OK), master:20.0.0.11
6：再次查看日志
[root@mha-manager ~]# cat /var/log/masterha/app1/manager.log
......
Tue Dec 29 22:16:53 2020 - [info] Dead Servers: # 停掉的服務
Tue Dec 29 22:16:53 2020 - [info] Alive Servers: # 存活的服務
Tue Dec 29 22:16:53 2020 - [info] 20.0.0.10(20.0.0.10:3306)
Tue Dec 29 22:16:53 2020 - [info] 20.0.0.11(20.0.0.11:3306)
Tue Dec 29 22:16:53 2020 - [info] 20.0.0.12(20.0.0.12:3306)
.......
7：主數據庫寫入數據同步并查看
其他數據庫都可以查到
mysql> create database ooo;
Query OK, 1 row affected (0.00 sec)
mysql> show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| mysql |
| ooo |
| performance_schema |
| test |
| test_db |
+--------------------+
6 rows in set (0.00 sec)
到此這篇關于MySQL 搭建MHA架構部署的步驟的文章就介紹到這了,更多相關MySQL 搭建MHA架構部署內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
您可能感興趣的文章:- 如何通過Python收集MySQL MHA 部署及運行狀態信息的功能
- MySQL高可用架構之MHA架構全解
- MySQL之MHA高可用配置及故障切換實現詳細部署步驟
- MySQL 有關MHA搭建與切換的幾個錯誤log匯總
- Mysql GTID Mha配置方法
- MySQL下高可用故障轉移方案MHA的超級部署教程
- MHA實現mysql主從數據庫手動切換的方法
- MySQL MHA 運行狀態監控介紹
